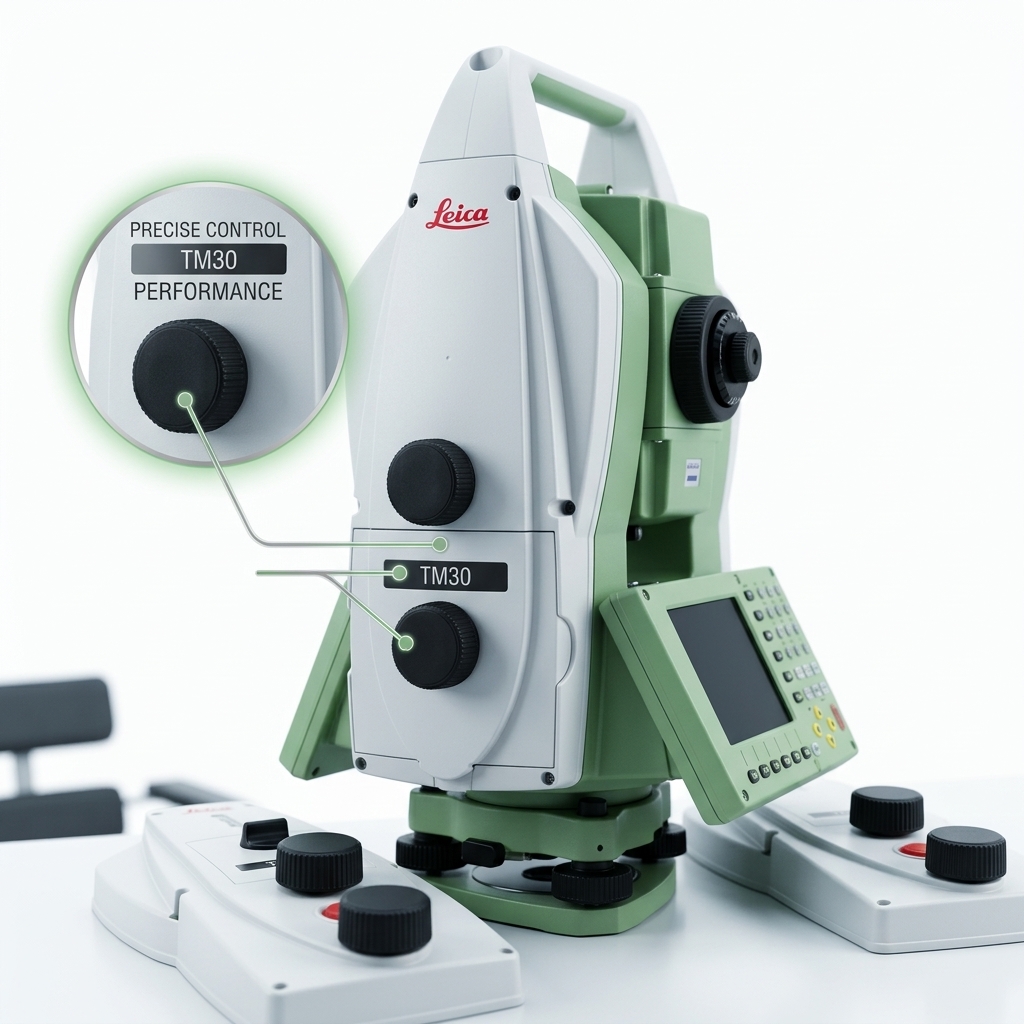

Total Station Angle Measurement System Repair Service Encoder Compensator Optical Plummet Calibration

Total Station Angle Measurement System Repair Service Encoder Compensator Optical Plummet Calibration
Total Station Angle Measurement System Repair Service Encoder Compensator Optical Plummet Calibration
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: GeoMaster
Certification: ISO 9001:2015, ISO 17123-3 Compliant
Numéro de modèle: ANG-REP-002
Quantité de commande min: 1 unité
Prix: USD 120-700 / Unit
Détails d'emballage: Insert en mousse antichoc dans un carton ondulé à double paroi de qualité export
Délai de livraison: 5 à 10 jours ouvrables pour une réparation standard
Conditions de paiement: T/T, PayPal, Western Union
Capacité d'approvisionnement: 200 unités par mois
meilleur prix Contactez
Détail Infomation
Type de service: Réparation du système de mesure d'angle Marques soutenues: Leica, Trimble, Topcon, Sokkia, Nikon, Pentax
Précision de l'angle après réparation: 1 seconde d'arc (standard), 0,5 seconde d'arc (haute précision) Gamme de compensateurs: ±4 minutes d'arc (plage de travail)
Type d'encodeur pris en charge: Absolu, incrémental, magnétique Norme d'étalonnage: Conforme à la norme ISO 17123-3
Garantie de réparation: 12 mois Délai d'exécution: 5-10 jours ouvrables
Mettre en évidence:

Angle Encoder Repair

,

Compensator Calibration Service

,

Optical Plummet Alignment

Description de produit

Total Station Angle Measurement System Repair & Calibration Service

Angle measurement is the foundation of total station accuracy. When encoders drift, compensators malfunction, or optical plummets go out of alignment, your survey data becomes unreliable. Our angle measurement system repair service addresses the complete angle measurement chain — horizontal and vertical encoders, tilt compensators, and optical plummet alignment — restoring your instrument to factory angular accuracy specifications. We service all major brands including Leica, Trimble, Topcon, Sokkia, and Nikon.

Key Features

  • Absolute & Incremental Encoder Repair — Glass disc cleaning, readhead alignment, signal processing board repair for both absolute and incremental encoders
  • Compensator Overhaul — Pendulum mechanism restoration, capacitive/inductive sensor recalibration, damping system service for Leica, Trimble, and Topcon compensators
  • Optical Plummet Alignment — Precision reticle centering and collimation on dedicated alignment bench to within 0.5mm at 1.5m
  • ISO 17123-3 Verification — Full-circle angle measurement verification per ISO 17123-3 procedures, including horizontal and vertical angle uncertainty assessment
  • Multi-Axis Calibration — Single-face and dual-face measurements verified across full 360° rotation in 15° increments
  • Before/After Calibration Report — Detailed report showing angular error measurements pre- and post-repair

Why Choose Our Angle System Repair

  • Specialized Encoder Lab — Dedicated clean-room workstations for encoder disassembly and repair, preventing dust contamination
  • Factory-Grade Calibration Bench — Precision collimator array with 0.1 arc-second reference accuracy for angular calibration
  • 12-Month Warranty — Full warranty on all angle measurement system repairs
  • Free Diagnostic Assessment — We diagnose the root cause before any repair work begins

Service Specifications

ParameterValue
Service TypeAngle Measurement System Repair & Calibration
Supported BrandsLeica, Trimble, Topcon, Sokkia, Nikon, Pentax
Post-Repair Angle Accuracy1 arc-second (standard), 0.5 arc-second (high-precision)
Compensator Working Range±4 arc-minutes
Compensator Setting Accuracy0.5 arc-second (post-repair)
Optical Plummet Accuracy≤0.5mm at 1.5m height
Encoder Types SupportedAbsolute, Incremental, Magnetic
Calibration StandardISO 17123-3 Compliant
Repair Warranty12 Months
Turnaround Time5-10 Working Days

Frequently Asked Questions

Q: What are signs of encoder failure?
A: Angle readings drift even when the instrument is stationary, horizontal/vertical angles jump unexpectedly, or the instrument shows encoder error codes on startup.

Q: How do I know if the compensator needs repair?
A: The instrument displays "Compensator Out of Range" persistently even on stable ground, or angle readings change when the instrument is slightly tapped.

Q: Do I need to send the tribrach for optical plummet alignment?
A: We can align the instrument's integrated optical plummet without the tribrach. However, for complete system accuracy, we recommend including the tribrach for verification.
