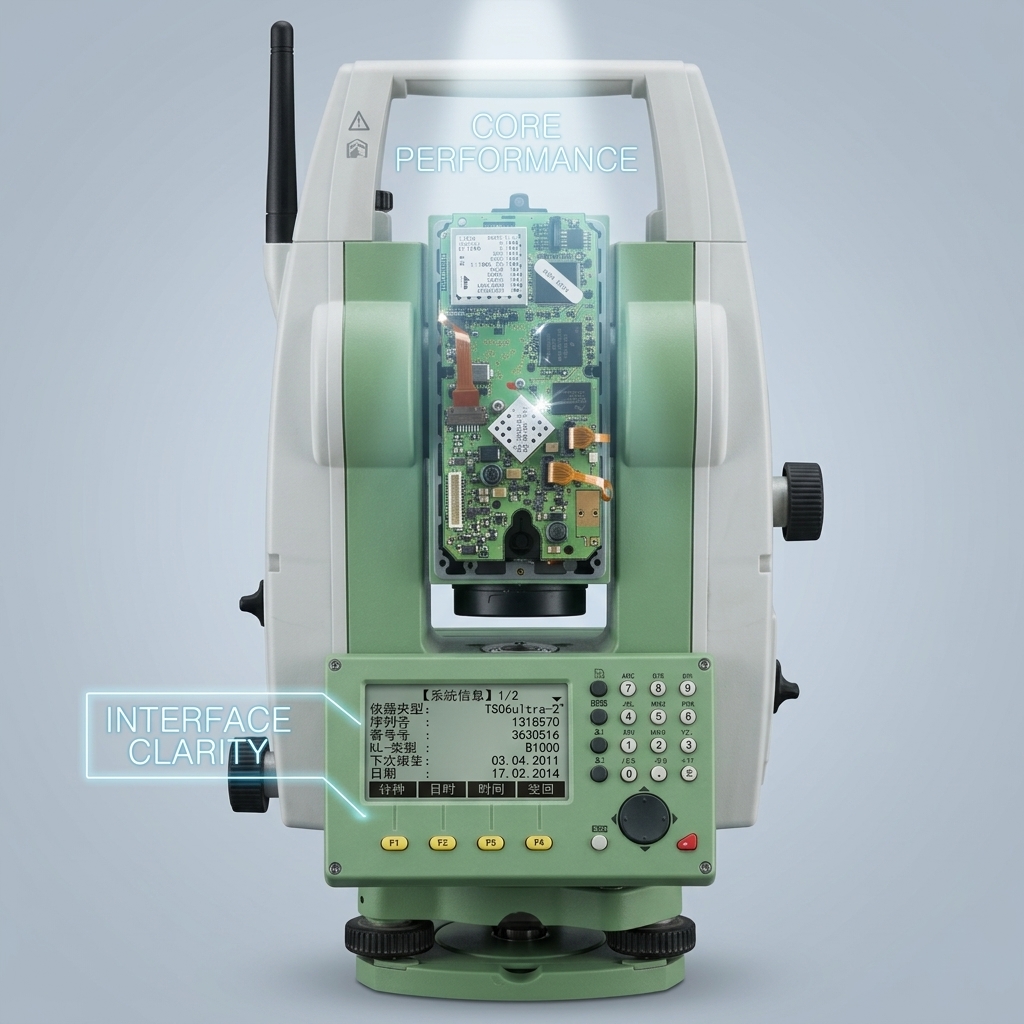

Total Station Mainboard Diagnostic Component Level PCB Repair Service for All Major Survey Instrument Brands

Total Station Mainboard Diagnostic Component Level PCB Repair Service for All Major Survey Instrument Brands
Total Station Mainboard Diagnostic Component Level PCB Repair Service for All Major Survey Instrument Brands
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: GeoMaster
Certification: ISO 9001:2015
Numéro de modèle: MB-REP-003
Quantité de commande min: 1 unité
Prix: USD 200-1200 / Unit
Détails d'emballage: Emballage antistatique résistant aux ESD avec mousse antichoc, carton de qualité export
Délai de livraison: 7 à 15 jours ouvrables selon la complexité du défaut
Conditions de paiement: T/T, PayPal, Western Union
Capacité d'approvisionnement: 150 unités par mois
meilleur prix Contactez
Détail Infomation
Type de service: Diagnostic de la carte mère et réparation au niveau des composants Marques soutenues: Leica, Trimble, Topcon, Sokkia, Nikon, Pentax, Spectra Précision
Niveau de réparation: Niveau composant (IC, condensateur, connecteur, remplacement BGA) équipement de diagnostic: Oscilloscope numérique, analyseur logique, caméra thermique, multimètre, station de retouche BGA
Types de PCB desservis: Carte d'alimentation, carte logique principale, carte de communication, carte pilote de moteur Garantie de réparation: 12 mois
Délai d'exécution: 7-15 jours ouvrables
Mettre en évidence:

Mainboard Component Repair

,

PCB Level Diagnostics

,

Survey Instrument Circuit Fix

Description de produit

Total Station Mainboard Diagnostic & Component-Level Repair

When a total station mainboard fails, replacing the entire board from the manufacturer can cost thousands of dollars. Our component-level repair service offers a cost-effective alternative — we diagnose and repair faulty circuit boards down to individual components (ICs, capacitors, connectors, BGA chips), saving you significant repair costs while maintaining OEM performance. We service mainboards from Leica, Trimble, Topcon, Sokkia, Nikon, Pentax, and other survey instrument brands.

Key Features

  • Advanced PCB Diagnostics — Digital oscilloscope, logic analyzer, and thermal imaging camera for precise fault identification on multi-layer PCBs
  • BGA & SMD Rework Capability — BGA rework station for replacing ball grid array processors and surface-mount components to manufacturer specifications
  • Power Circuit Repair — DC-DC converter restoration, battery charging circuit repair, power management IC replacement
  • Communication Board Repair — Bluetooth module replacement, USB controller repair, RS-232 serial port restoration, Wi-Fi module diagnostics
  • Motor Driver Board Service — H-bridge driver repair, stepper motor controller replacement, feedback encoder circuit restoration
  • ESD-Safe Workshop — All repairs performed in ESD-protected workstations with grounding and ionization

Why Choose Our Mainboard Repair

  • Significant Cost Savings — Component-level repair typically costs 40-70% less than full mainboard replacement from the manufacturer
  • OEM-Spec Components — We source original manufacturer-specification ICs and components, never generic substitutes
  • Comprehensive Testing — Every repaired board undergoes full functional testing in a working instrument before return
  • 12-Month Warranty — Full warranty on all mainboard repairs, giving you peace of mind
  • No-Fix-No-Fee — If we cannot repair the board, there is no charge for the diagnostic evaluation

Service Specifications

ParameterValue
Service TypeMainboard Diagnostic & Component-Level Repair
Supported BrandsLeica, Trimble, Topcon, Sokkia, Nikon, Pentax, Spectra Precision
Repair LevelComponent-Level (IC, Capacitor, Connector, BGA, SMD)
Diagnostic EquipmentDigital Oscilloscope, Logic Analyzer, Thermal Camera, BGA Rework Station
PCB Types ServicedPower Board, Main Logic Board, Communication Board, Motor Driver Board
Supported InterfacesBluetooth, USB, RS-232, Wi-Fi, SD Card Slot
Repair Warranty12 Months on Parts and Workmanship
Turnaround Time7-15 Working Days (Complexity Dependent)

Frequently Asked Questions

Q: What symptoms suggest mainboard failure?
A: Instrument won't power on, random shutdowns during operation, communication ports not responding, system boot errors, or display showing garbled characters.

Q: Can you repair water-damaged mainboards?
A: Yes, we specialize in water damage recovery. However, outcome depends on the extent of corrosion. We recommend immediate service after water exposure for the best chance of recovery.

Q: How do you ensure repair quality?
A: Every repaired mainboard is tested in a fully functional instrument for a minimum of 4 hours before return, with all measurement modes verified.
