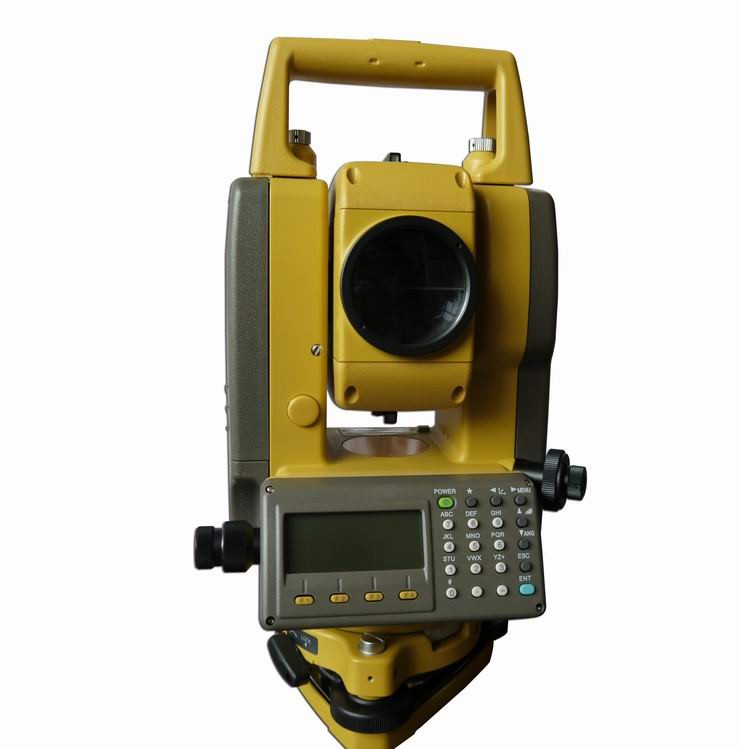

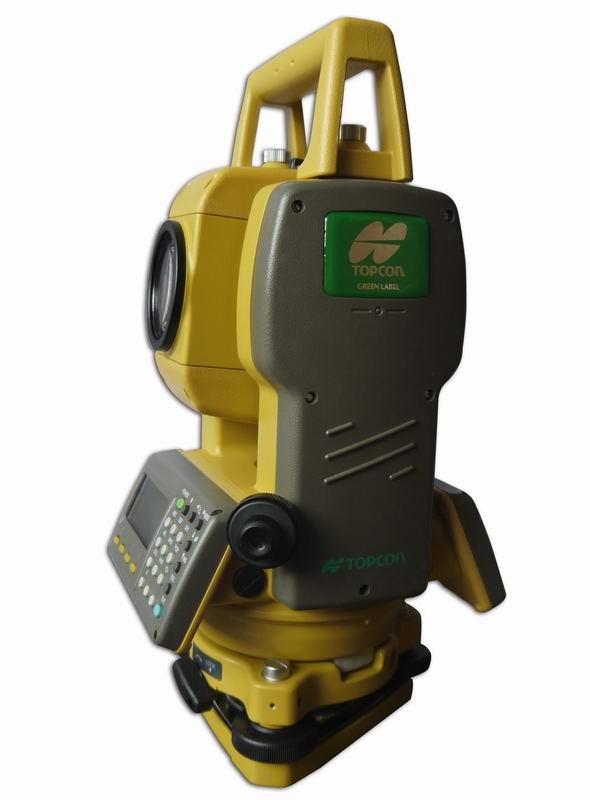

Topcon GTS102N Total Station

Informations de base

Lieu d'origine:	La Chine
Nom de marque:	Topcon
Numéro de modèle:	GTS102N

Quantité de commande min:	1PC
Prix:	usd3000
Détails d'emballage:	avec le boîtier en plastique intérieur et le carton externe
Délai de livraison:	dans 3-5days après les marchandises soyez payé.
Conditions de paiement:	TT
Capacité d'approvisionnement:	10000 par an

meilleur prix Contactez

Détail Infomation

Mettre en évidence:

reflectorless total station

manual total station

Description de produit

Topcon Total Station GTS-100N Series

The new Topcon GTS-100N series total station combines the traditional Topcon rugged field-ready quality and accuracy with economical, compact design that is perfect for everyday measuring and positioning applications such as topo and construction layout.

Topcon GTS102N Total Station 0

GTS-100N features:

Economical, value priced measuring solution

Rugged, durable, water resistant design

Two accuracies to choose from 2" & 5"

Expanded, Full numeric keypad

On board programs & 24,000 point data storage

Ideal as a construction stakeout total station

Perfect when combined with FC field controller and software

The entry-level value choice is the GTS-100N. Built with legendary Topcon precision and durability, the GTS-100N provides the construction professional with a dedicated lay-out solution. Use the on-board software to layout points in the field, confident that with Topcon, you'll be right on target. Or use any of Topcon's field controllers running one of our range of software packages tailored to the tasks you want to perform.

Specifications
Telescope
Length	150 Millimeters
Objective Lens Diameter	45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1°30
Resolve Power	3 "
Min. Focus Distance	1.3 meters
Measurement Range
1 Prism	6500 ft, 2000 meters
3 Prism	8800 ft, 2700 meters
Measuring Accuracy
Prism Mode	±(2mm + 2ppm x D)m.s.e. fine, N/A
measurement time	1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method	Absolute Reading
Detection	2 horizontal, 1 vertical
Minimum reading	N/A, 1/5 mgon
Tilt Correction
Type	Single Axis
Method	Liquid surface reflective profile sensor reading type
Compensating Range	±3'
Correction Unit	1 arc sec, N/A
Computer Unit
Display	2 screen, dot matrix graphic LCD display
Power
Approximate battery life	9 including distance measurement, 40 Angle measurement only
